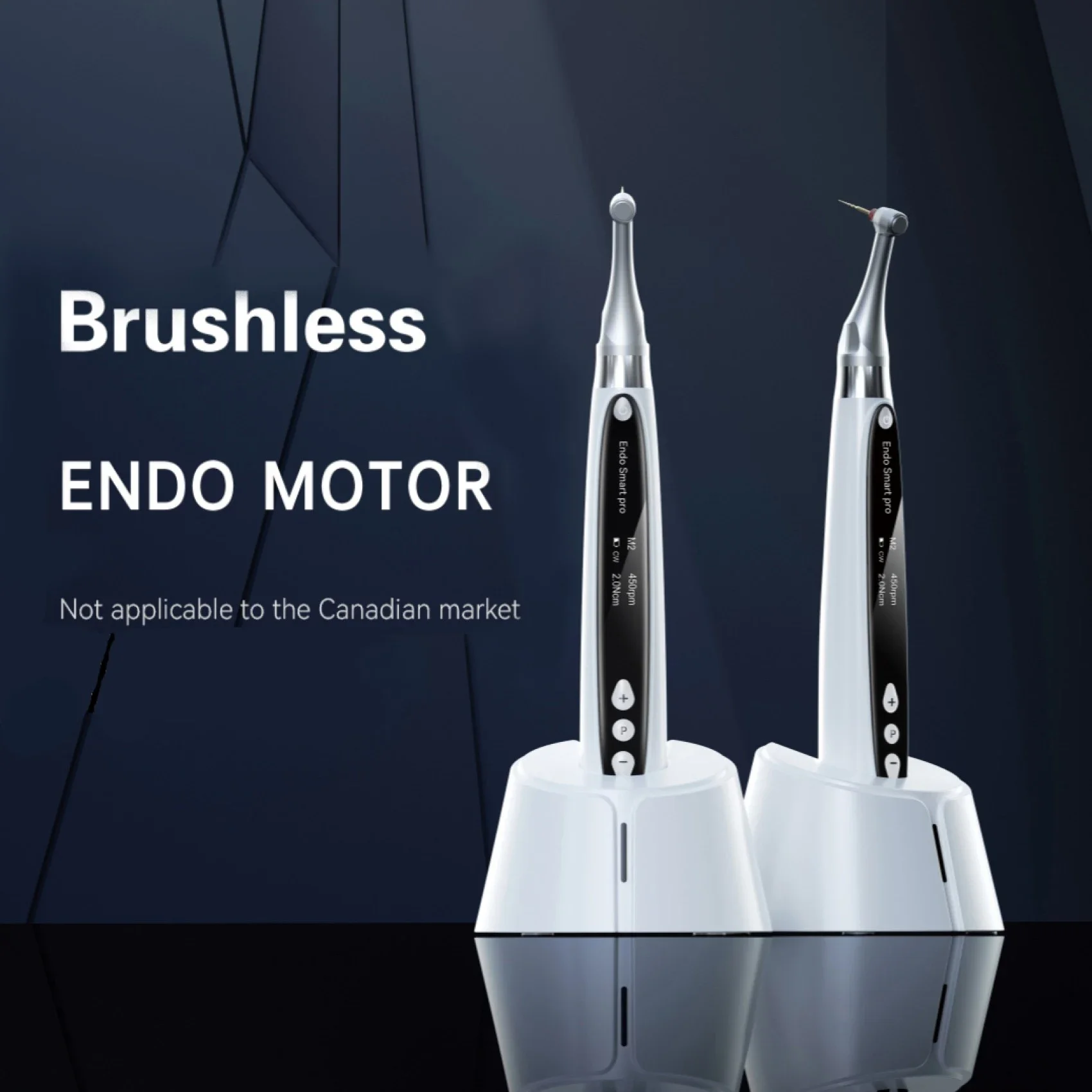

ENDO SMART PRO

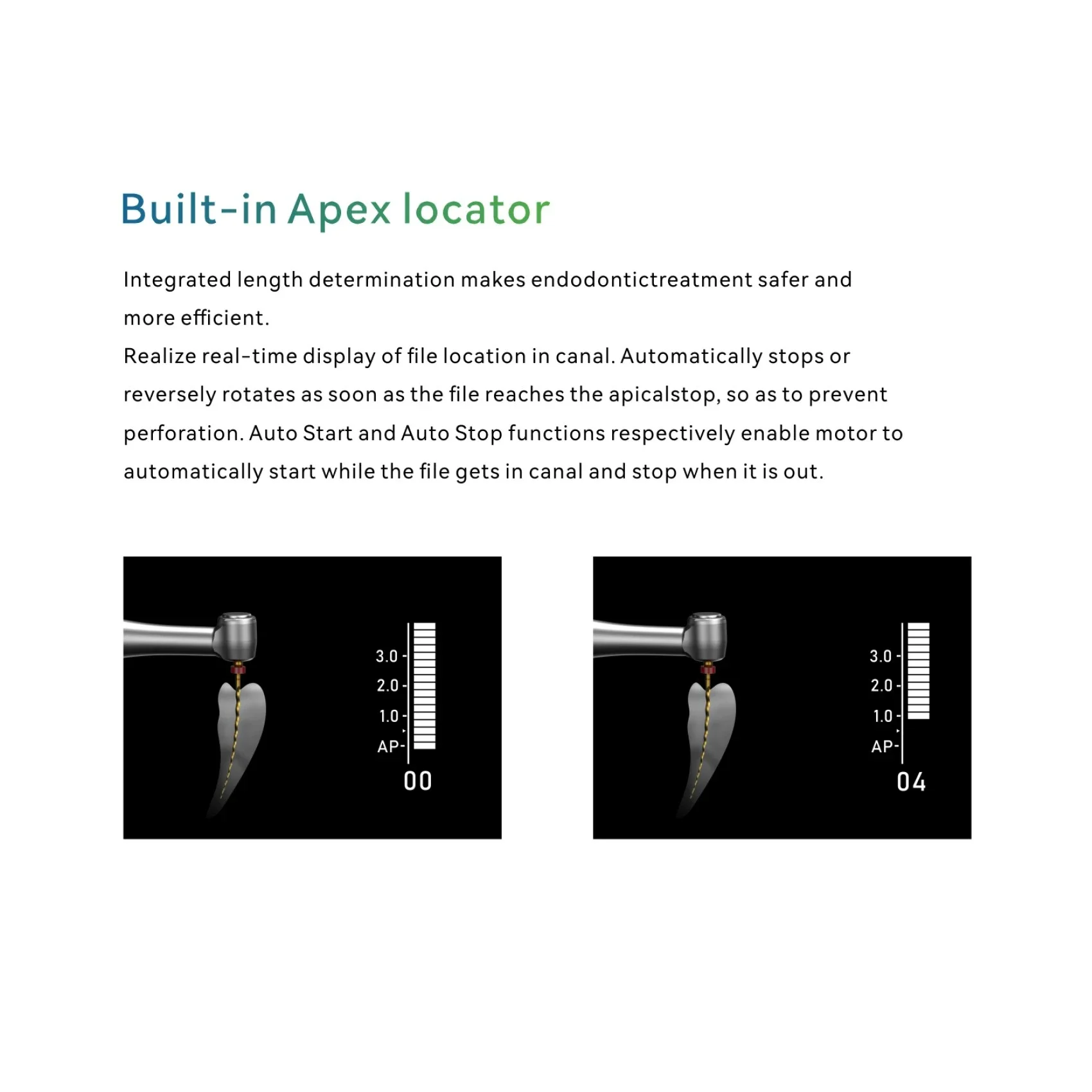

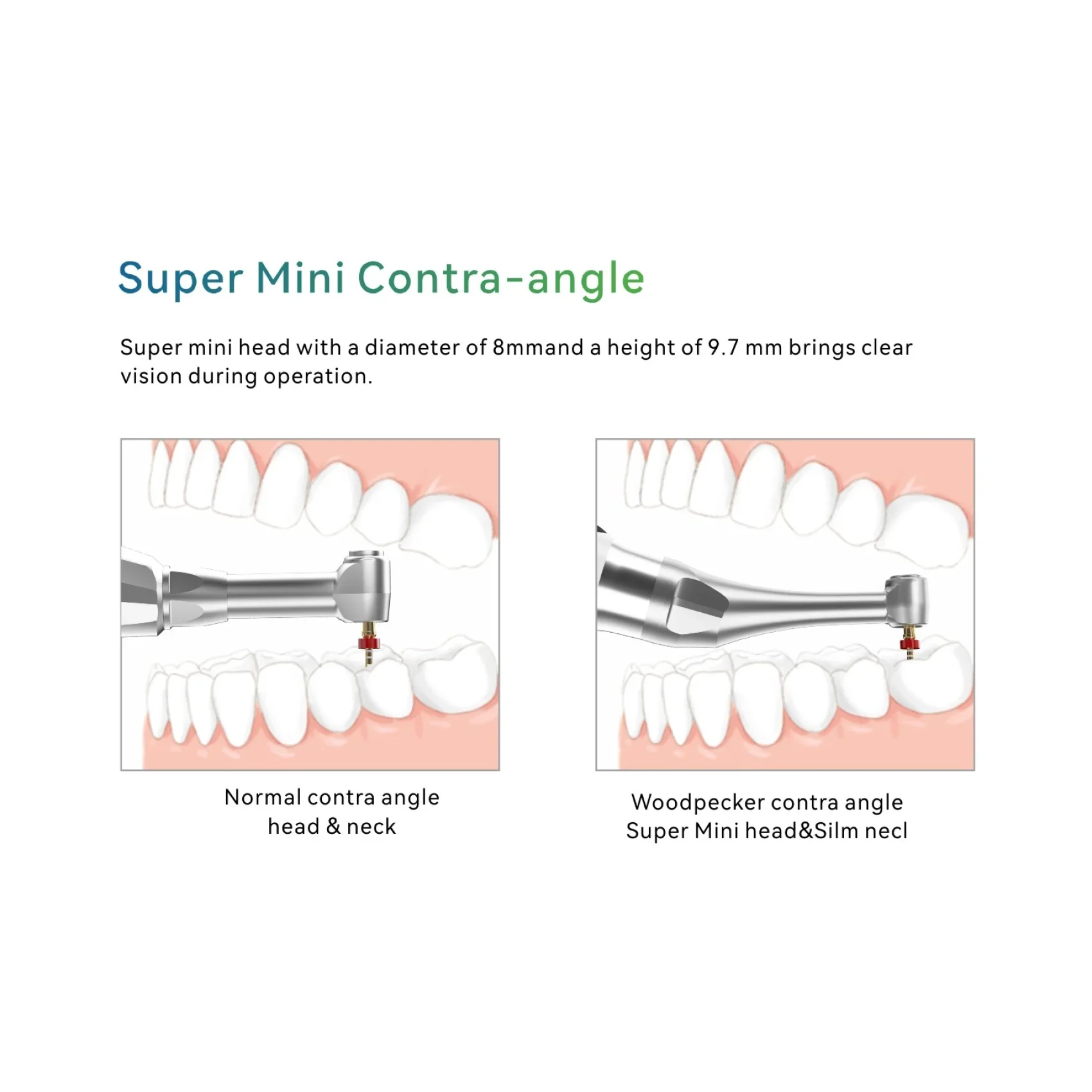

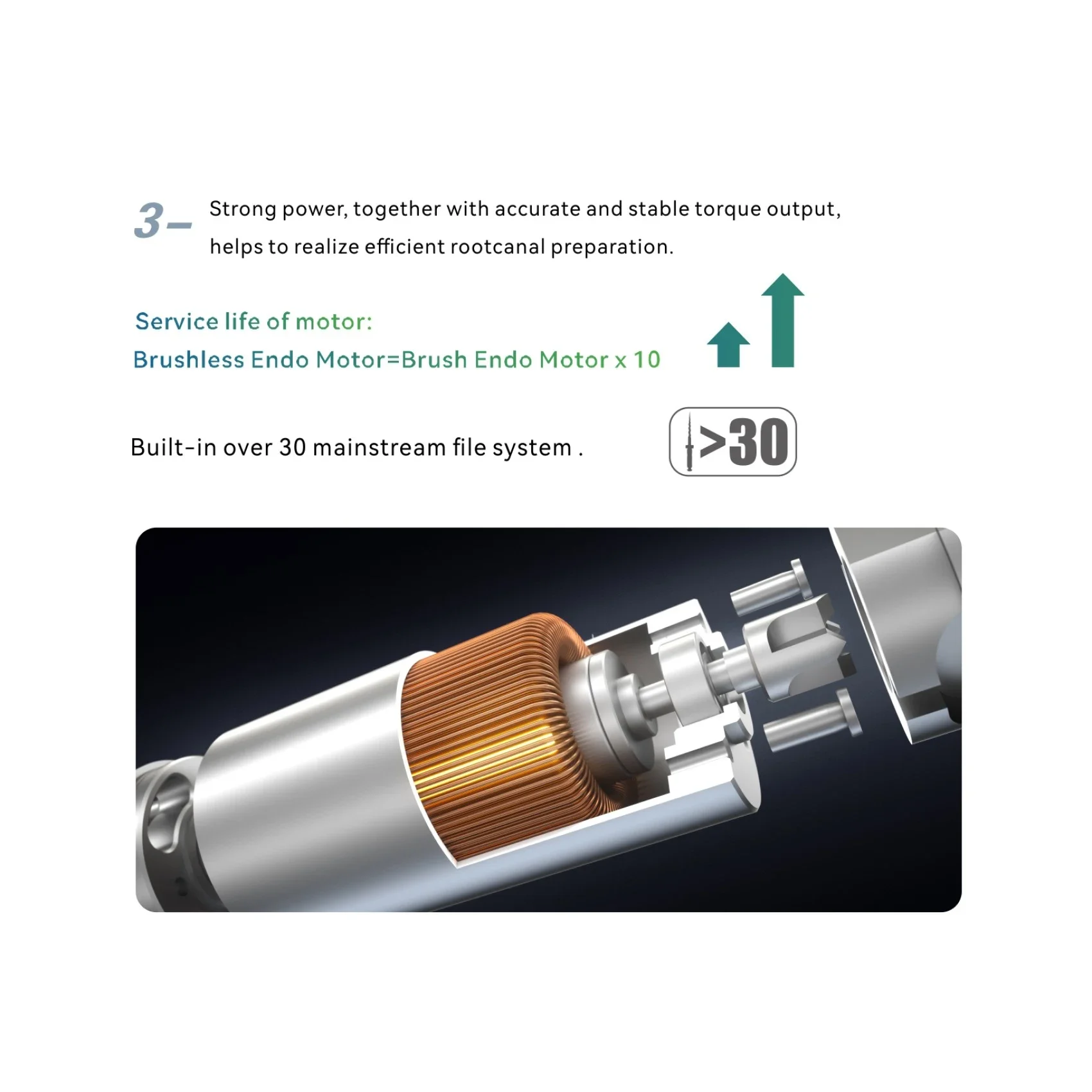

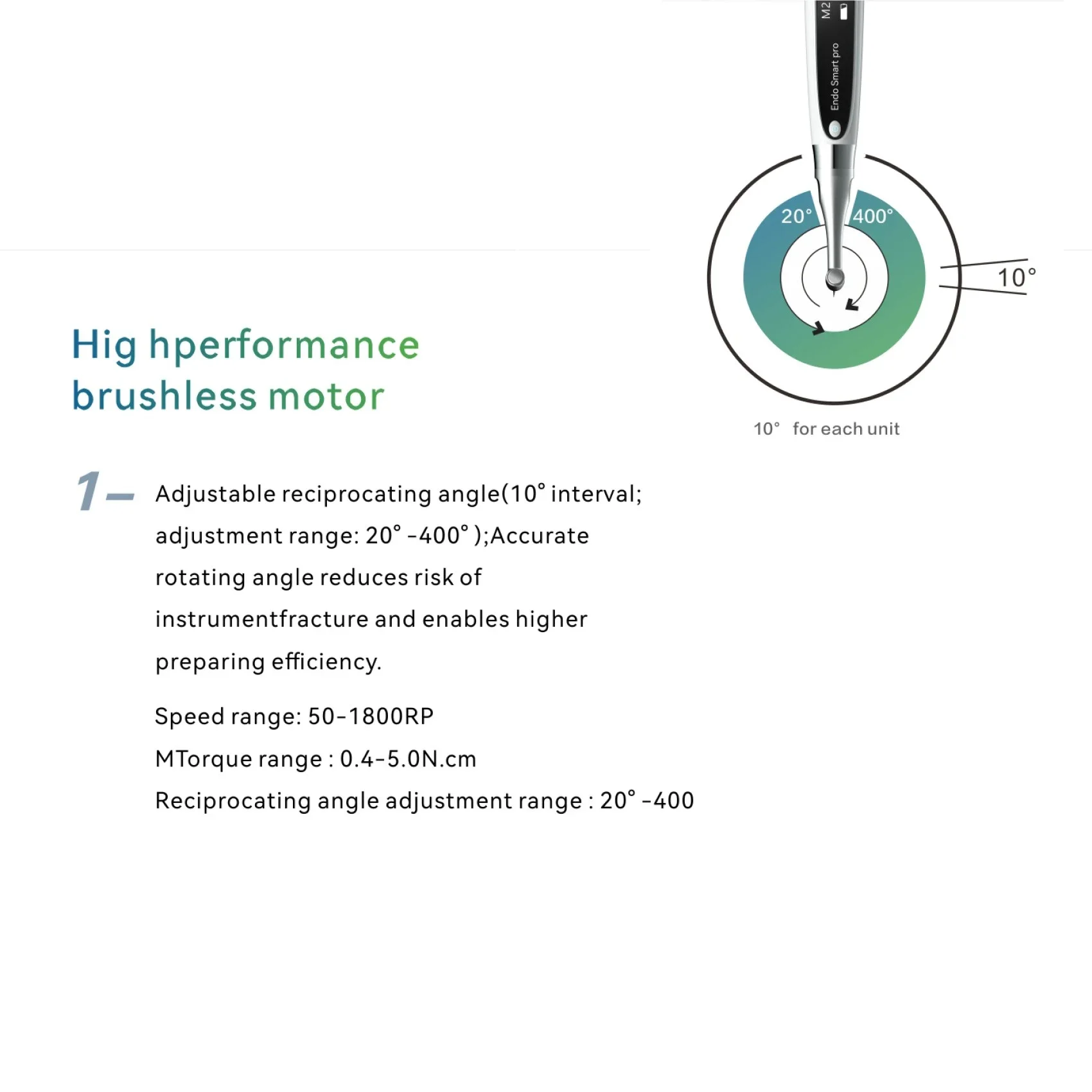

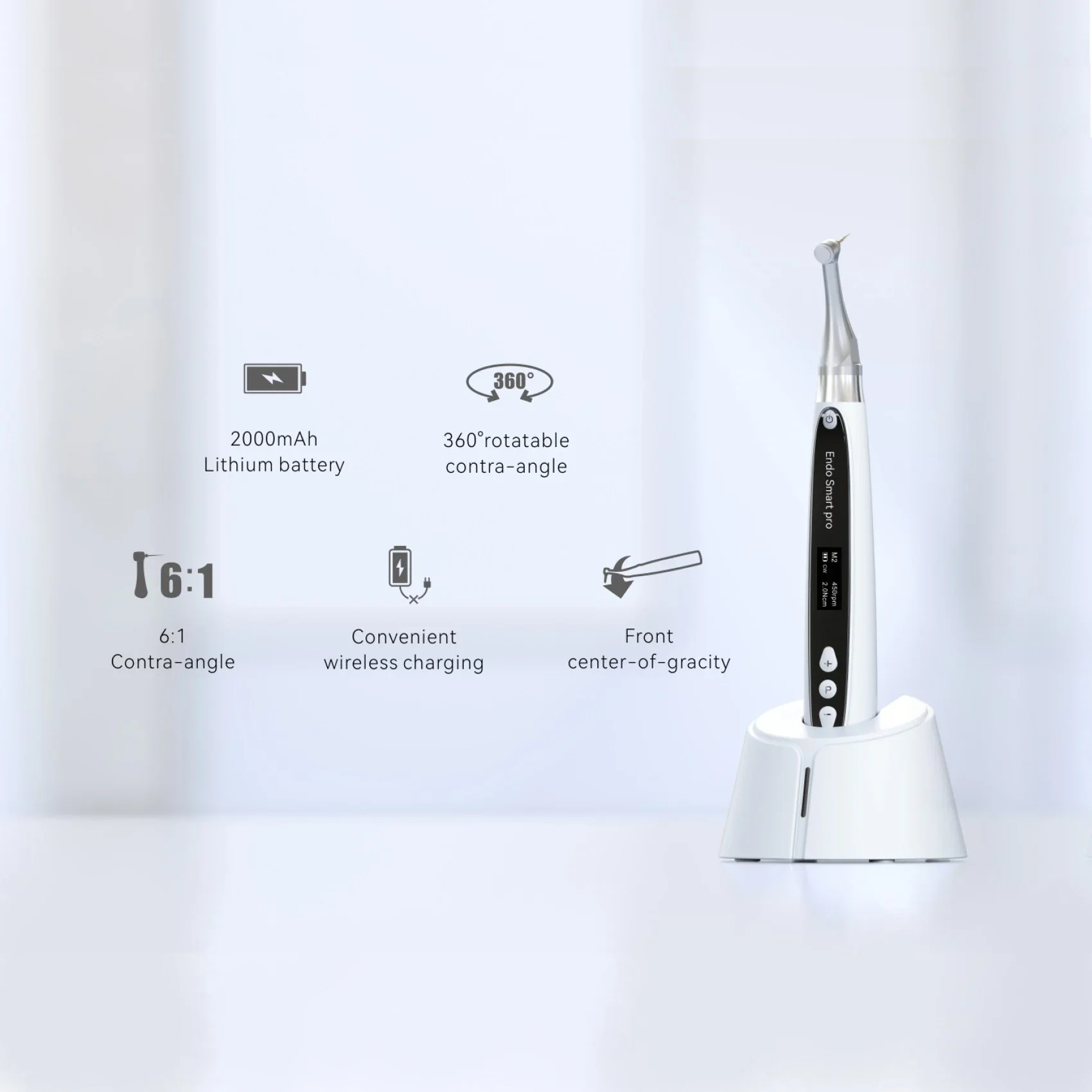

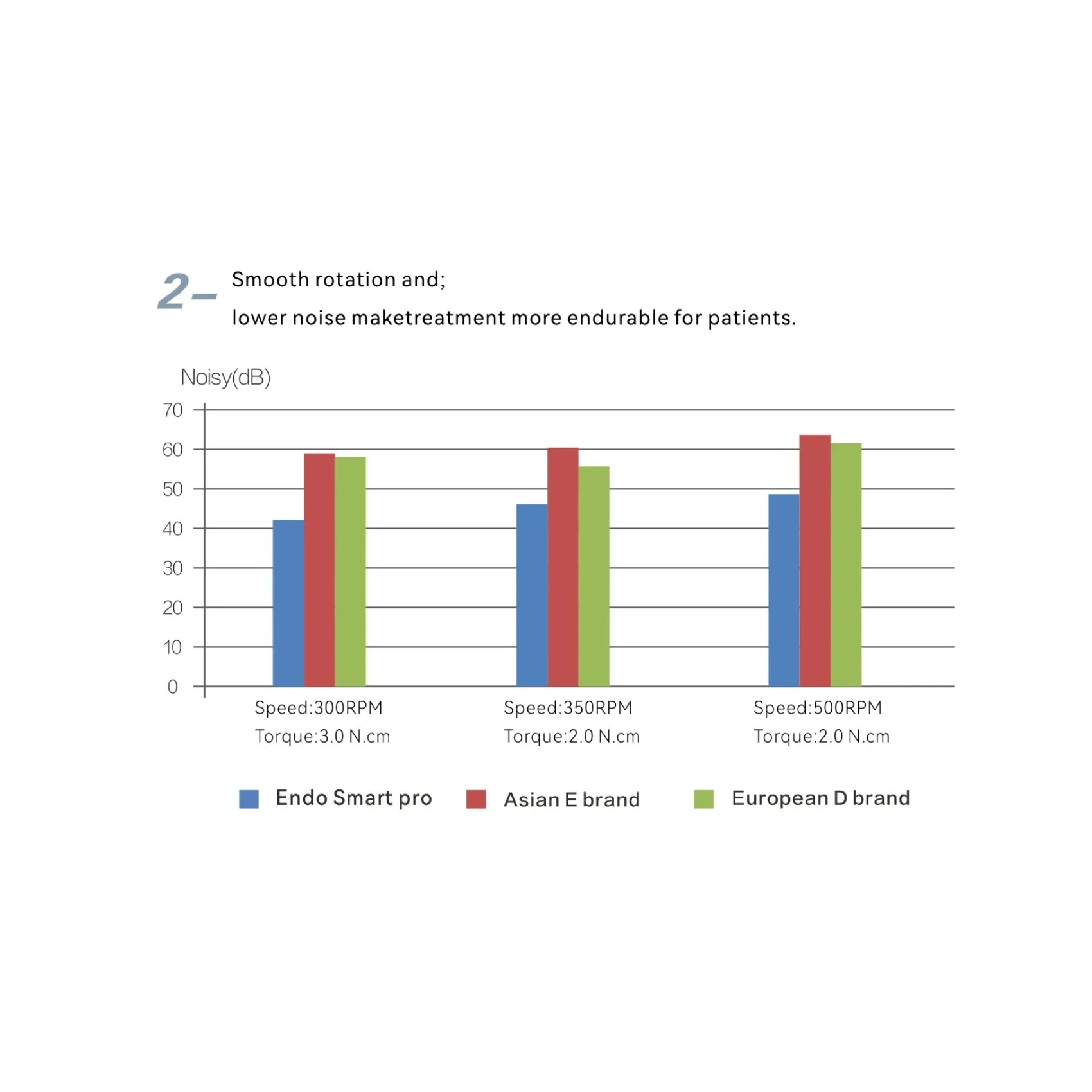

Woodpecker Dental Endomotor EndoSmart Pro is an updated version of the Endomotor EndoSmart Plus, designed by Woodpecker, known for its lightweight and high-quality endodontic equipment. The Pro version combines the features of a brushless endo motor with an inbuilt apex locator and a supermini contra angle. The brushless motor utilized in the EndoSmart Pro operates without traditional mechanical brushes and commutators, offering a more durable and efficient motor system. This high-performance brushless motor provides a wide range of torque (0.4-5.0 Ncm) and speed (100-1800 rpm), ensuring accurate and stable rotation for efficient cutting during root canal preparations. With smoother rotation and lower noise, it facilitates precise and stable cutting even in narrow and curved areas of the root canal. The wireless 6:1 super mini contra-angle handpiece included with the EndoSmart Pro is compact yet powerful, measuring only 9.7mm 8mm 6mm. This contra-angle handpiece offers low speed and stable rotation, enabling precise control during procedures. Its 360-degree rotatable design allows for flexible operation and facilitates access to teeth at different angles. Advantages: handpiece reduction 6:1 head rotation angle at 360 ° 2000 mAh lithium battery 30 built-in known file systems 10 user programs 5 modes that can be set/configured by the user ability to change speed, torch and rotation angles built-in apex locator with visualization of the position of the file in the channel in real time the compact handpiece head with a diameter of 8 mm and a height of 9.7 mm provides a large field of view in treatment Operating modes: EAL - autonomous apex locator mode CW – clockwise rotation CCW – anti-clockwise rotation/When using this mode, a double beep sounds continuously REC - reciprocating/reciprocal motion (range 20° - 400°, adjustable angle of reciprocal motion with an interval of 10°) ATR – adaptive torque reverse. The file rotates clockwise, but if the load on the file exceeds the set touch value in a certain area, the file begins to rotate in reciprocating mode. After passing this section, the file returns to the previous clockwise rotation mode. Clockwise movement is set by the user in the range 60° - 400° (interval 10°), counterclockwise also in the range 60° - 400° (interval 10°), but not more than the angle of translational movement. With an active apex locator, additional functions are activated: Apical Action (AP) – file when reaching the apical point stops or starts rotating in the opposite direction (reverse, stop) Auto Start – file rotation begins when the file enters the channel Auto Stop – file rotation stops when the file is output from the channel Apical Slow Down - the rotation of the file slows down when approaching the apical hole
