ENDOMATIC

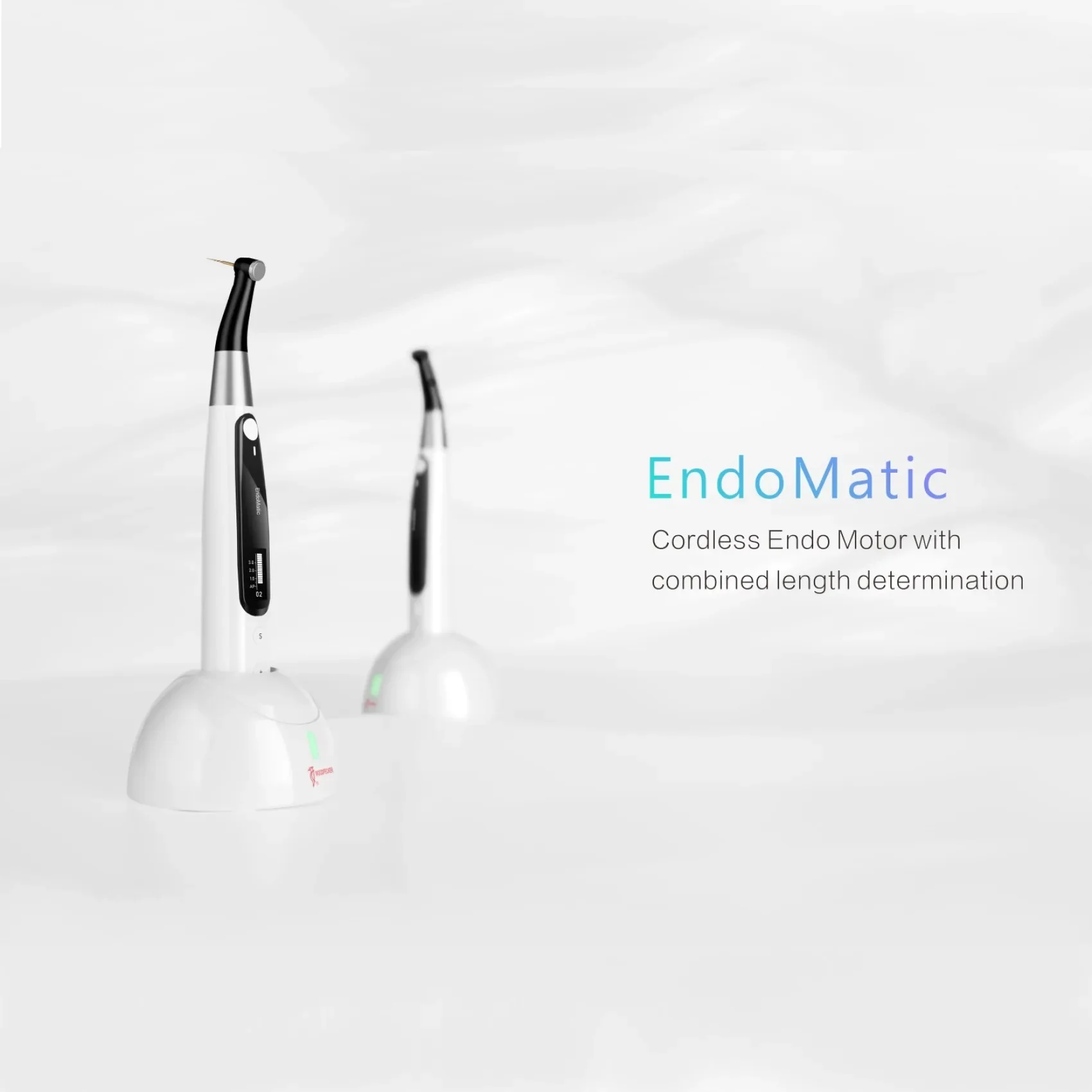

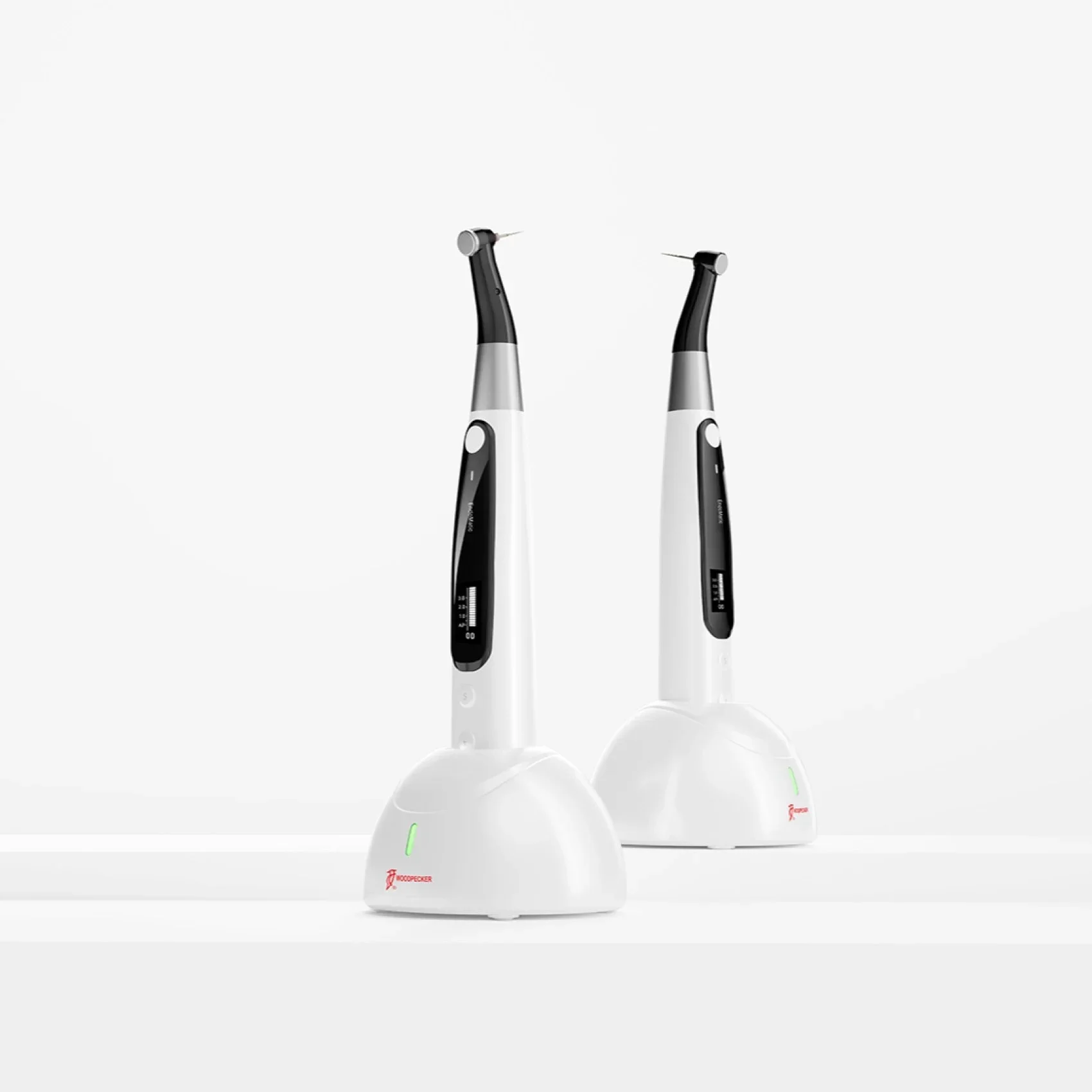

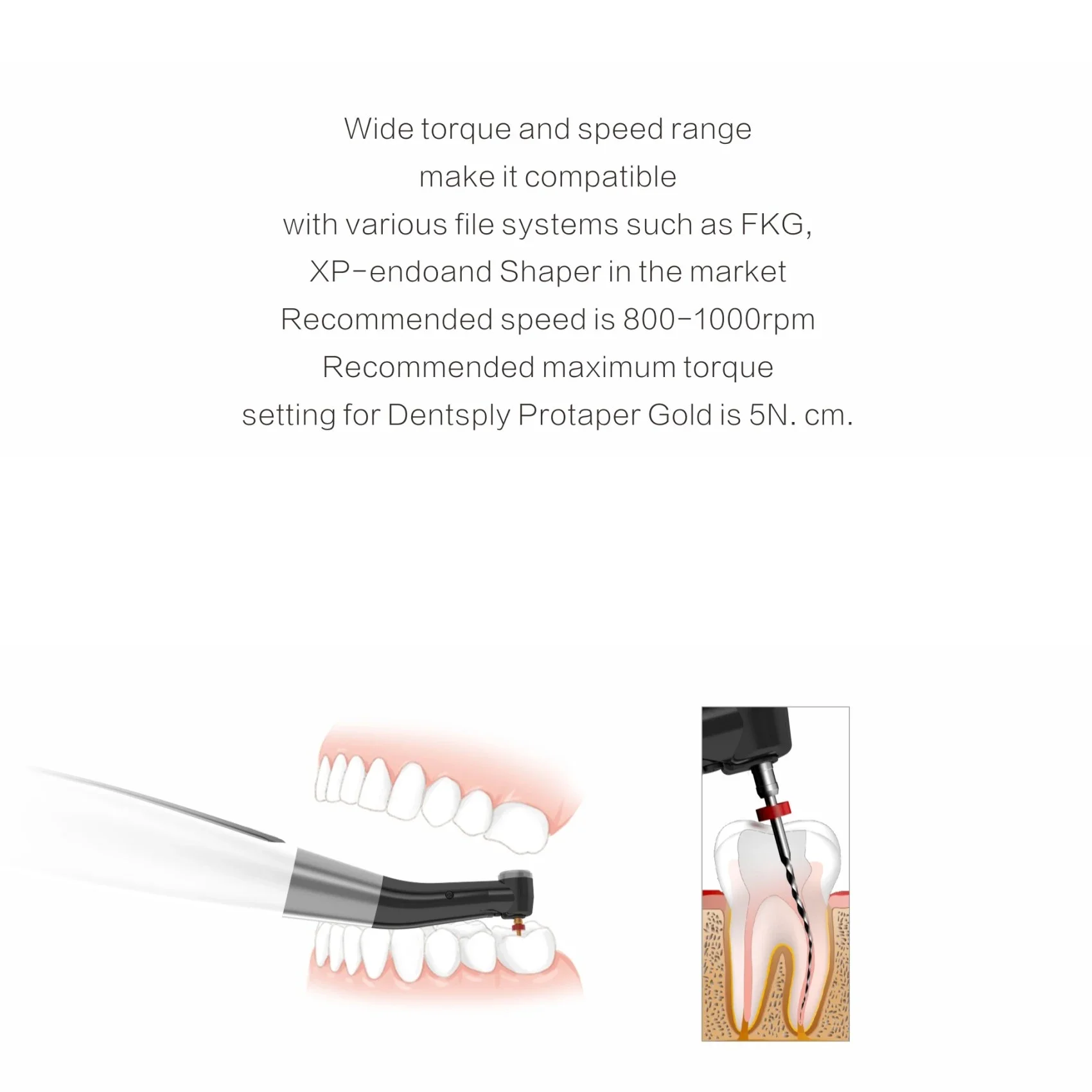

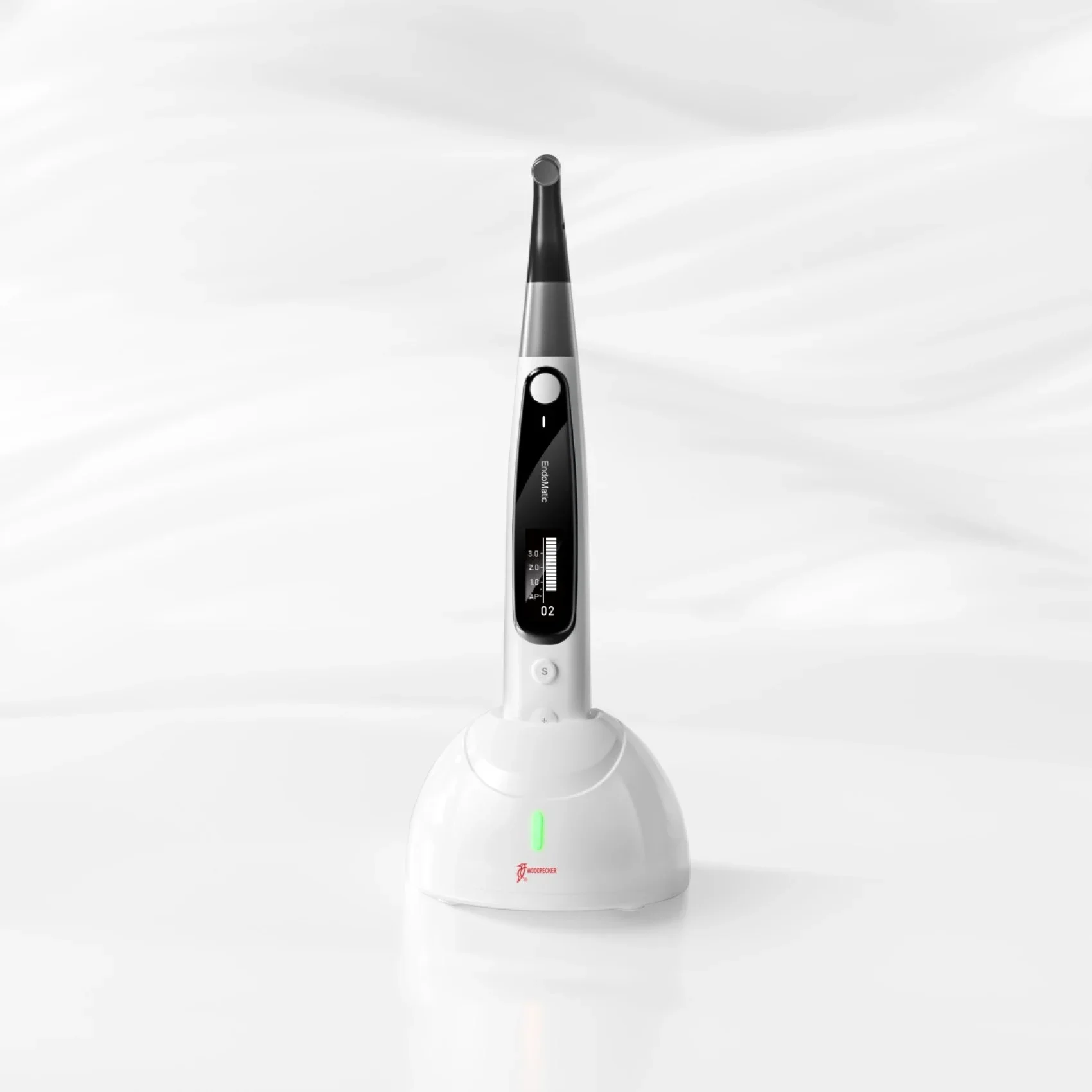

Woodpecker dental endomotor EndoMatic is mainly used in Endodontic treatment. It is a cordless endo motor with root canal measurement capability. It can be used as an endo motor for the preparation and enlargement of root canals, or a device for measuring canal length. It can be used to enlarge the canals while monitoring the position of the file tip inside the canal. One of the notable features of the EndoMatic is its cordless and portable design, providing convenience and flexibility during procedures. The motor handpiece of the EndoMatic is equipped with a lithium battery with a capacity of 3.7V and 2000mAh. This high-capacity battery ensures long-lasting operation without the need for frequent recharging. To power the device, a power adapter is included in the package. The input range of the adapter is ~100V-240V, supporting worldwide usage. It operates at a frequency of 50Hz/60Hz with a maximum input current of 400mA. The output is DC5V/1A, providing a stable and reliable power supply to the device. The torque range of the EndoMatic is specified as 0.4Ncm to 5.0Ncm (4mNm to 50mNm). This wide range allows dental professionals to select the appropriate torque level for different treatment requirements, ensuring precise and controlled root canal preparation. The device is designed to operate within specific environmental parameters. The operating temperature should be maintained between 5°C and 40°C to ensure optimal performance. The relative humidity should fall within the range of 30% to 75%, while the atmospheric pressure should be between 70kPa and 106kPa. Adhering to these environmental conditions ensures the device functions reliably and consistently. When used in Integrated mode, it saves time and is very safe due to its safety features like : Apical Slow Down Apical Slow Reverse A new feature of ATR - Adaptive Torque Reverse is added advantage for safety as it runs in continuous rotation but reciprocates once the torque exceeds or the file gets engaged. Apex Locator accuracy is excellent in any canal condition. Ultimate Cordless Device with very lightweight (153 gms). Contraindication Patients with implanted pacemakers (or other electrical equipment) who are warned not to use household appliances such as electric razors, hair dryers, etc. are not recommended to use this device. Advantages: handpiece reduction 1:1 head rotation angle at 300 ° 2000 mAh lithium battery 27 built-in known file systems 10 user programs 5 modes that can be set/configured by the user ability to change speed, torch and rotation angles built-in apex locator with visualization of the position of the file in the channel in real time Operating modes: EAL - autonomous apex locator mode CW – clockwise rotation CCW – anti-clockwise rotation/When using this mode, a double beep sounds continuously REC - reciprocating movement (interval 10 °, adjustment range 20 ° - 340 °) ATR - adaptive torque reversal. The file rotates clockwise, but if the load on the file exceeds the set touch value in a certain area, the file begins to rotate in reciprocating mode. After passing this section, the file returns to the previous clockwise rotation mode. The user can only set the clockwise rotation angle in the range 120° - 340° (10° interval). With an active apex locator, additional functions are activated: Apical Action (AP) – file when reaching the apical point stops or starts rotating in the opposite direction (reverse, stop) Auto Start – file rotation begins when the file enters the channel Auto Stop – file rotation stops when the file is output from the channel Apical Slow Down - the rotation of the file slows down when approaching the apical hole
